EPS Machine
Application of convenient user-centered, self-developed PLC program
A culmination of 40 years of production know-how
Selection of materials and design application focusing on high durability
SAM Molding Machine & Mold Standard Specifications
| SAM molding machine model name | Existing name | Inside dimensions of the molding machine | Mold plate dimensions | Mold plate bolt spacing | Maximum possible internal dimensions of the molding machine | EJECT PIN LIMITED DINSTANCE |
|---|---|---|---|---|---|---|
| S140 | 1360H | 1,250 X 1,300 | 1,303 X 1,306 | 1,320 X 1,360 | 1,250 X 1,300 | 1,150 X 1,200 |
| 1400H | ||||||
| S160 | 1500H | 1,235 X 1,480 | 1,306 X 1,506 | 1,310 X 1,520 | 1,250 X 1,460 | 1,150 X 1,360 |
| 1600H | 1,310 X 1,560 | 1,250 X 1,500 | ||||
| 1700H | 1,235 X 1,480 | 1,306 X 1,596 | 1,320 X 1,640 | - | 1,135 X 1,380 | |
| 1,306 X 1,586 | ||||||
| S170 | 1700H | 1,250 X 1,540 | 1,306 X 1,596 | 1,320 X 1,640 | 1,250 X 1,570 | 1,150 X 1,440 |
| 1,306 X 1,586 | ||||||
| S180 | 1800H | 1,250 X 1,680 | 1,306 X 1,696 | 1,320 X 1,800 | 1,250 X 1,720 | 1,150 X 1,580 |
| 1900H | 1,306 X 1,796 | 1,320 X 1,840 | 1,250 X 1,780 | |||
| S190 | 1900H | - | 1,306 X 1,796 | 1,320 X 1,840 | 1,250 X 1,780 | 1,150 X 1,680 |
| S240 | 2400H | 2,260 X 1,250 | 2,296 X 1,506 | 2,305 X 1,310 | 2,230 X 1,250 | 2,160 X 1,150 |
| S270 | 2700H | 2,600 X 1,650 | 2,616 X 1,650 | 2,640 X 1,776 | 2,600 X 1,700 | 2,500 X 1,550 |
| S270H | 2700H | 2,600 X 1,750 | 2,666 X 1,802 | 2,670 X 1,806 | 2,600 X 1,750 | 2,500 X 1,650 |

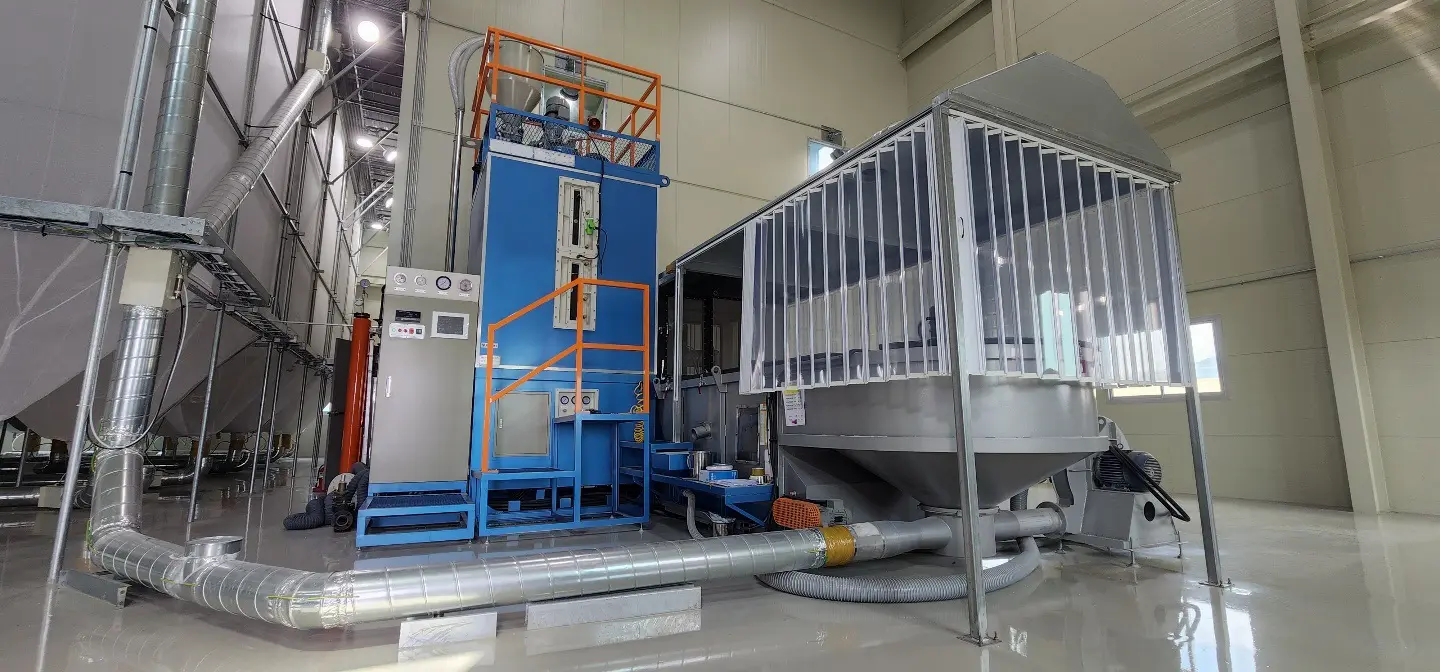

S180P EPS
approx. 77 000 €

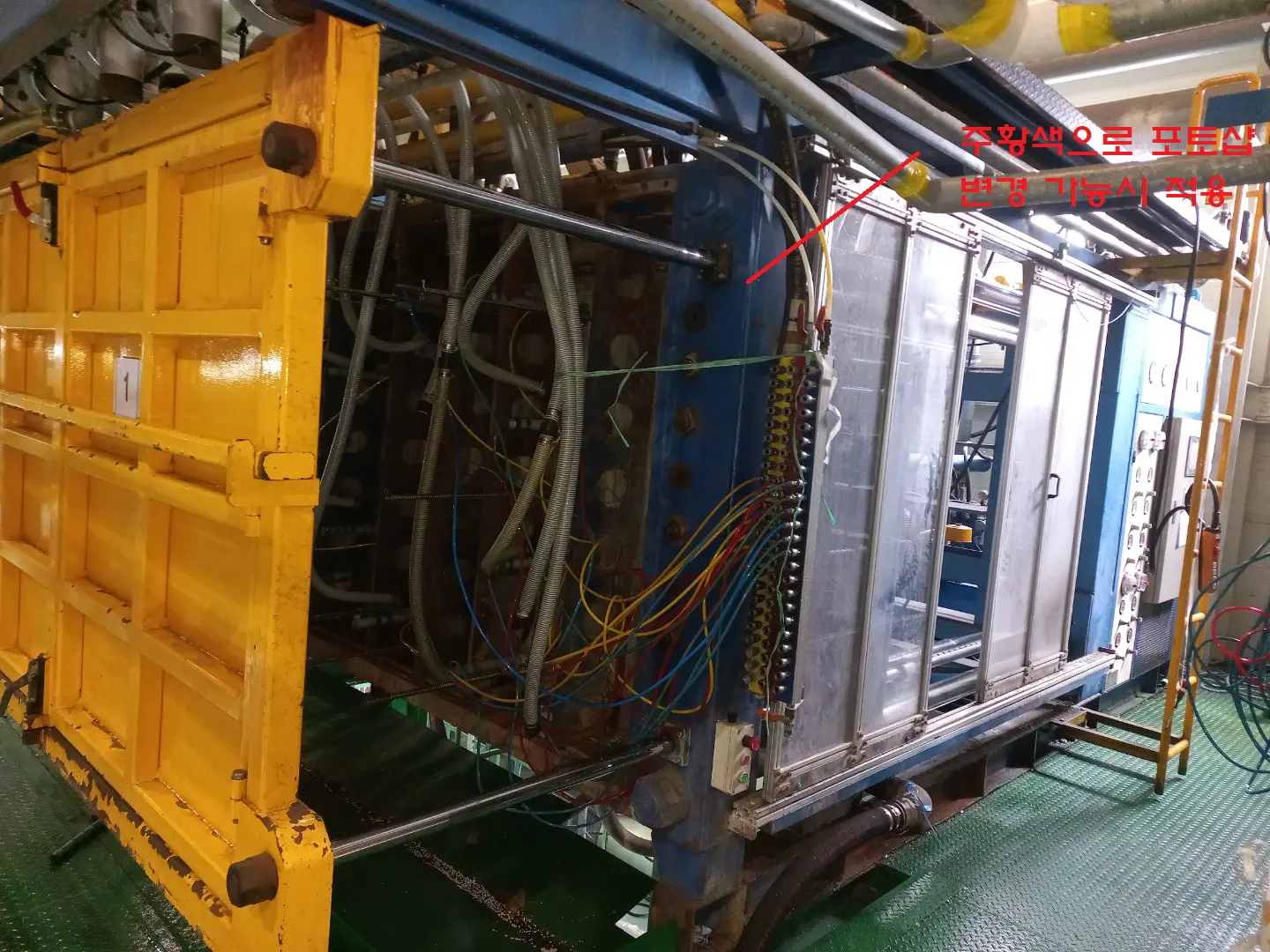

S270 EPS
approx. 100 000 €

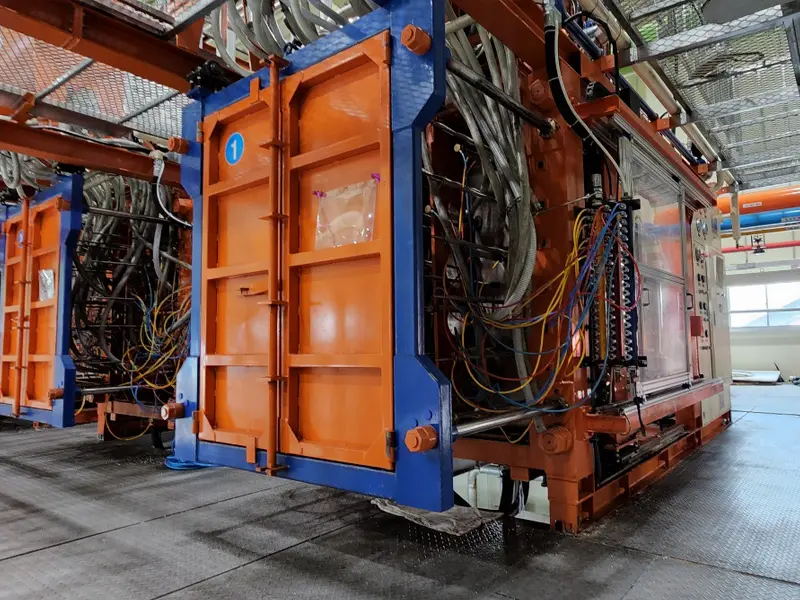

S240 EPS
approx. 87 000 €

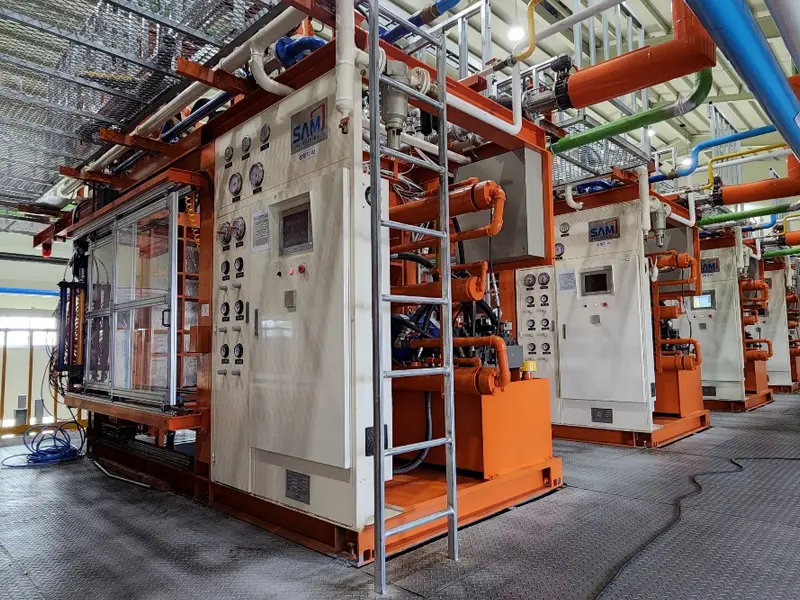

S190 EPS
approx. 73 000 €

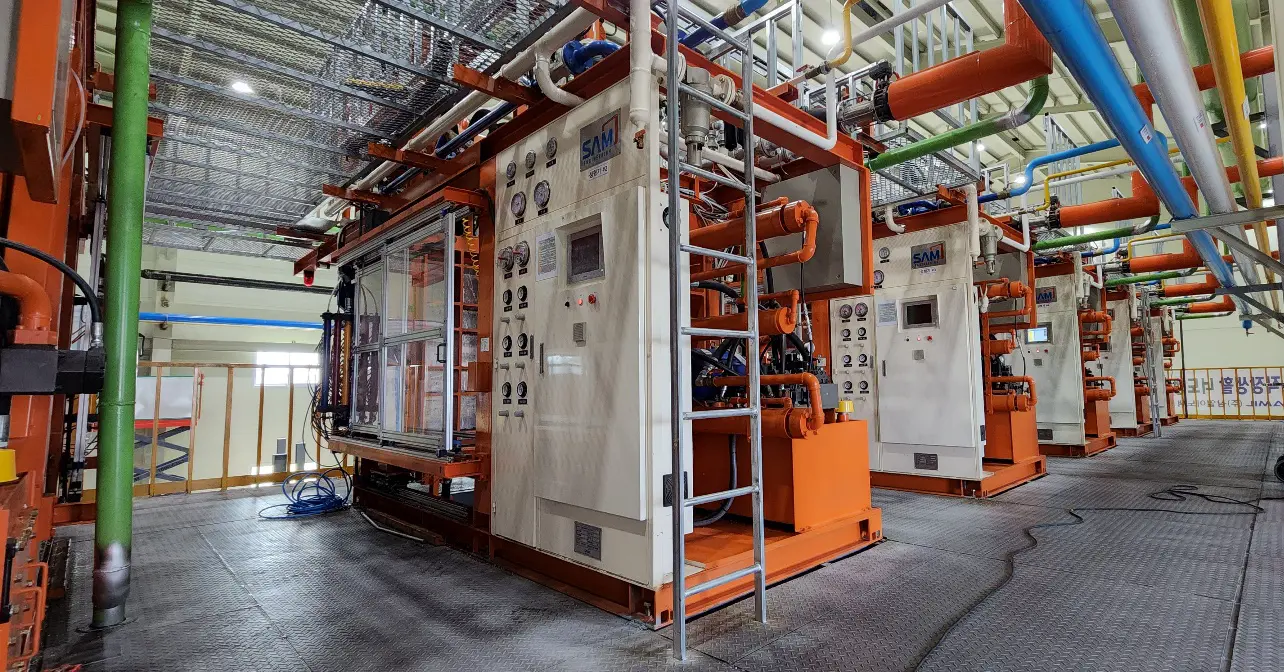

S170 EPS
approx. 60 000 €
